SKU
ACS8-IW_CONFIG

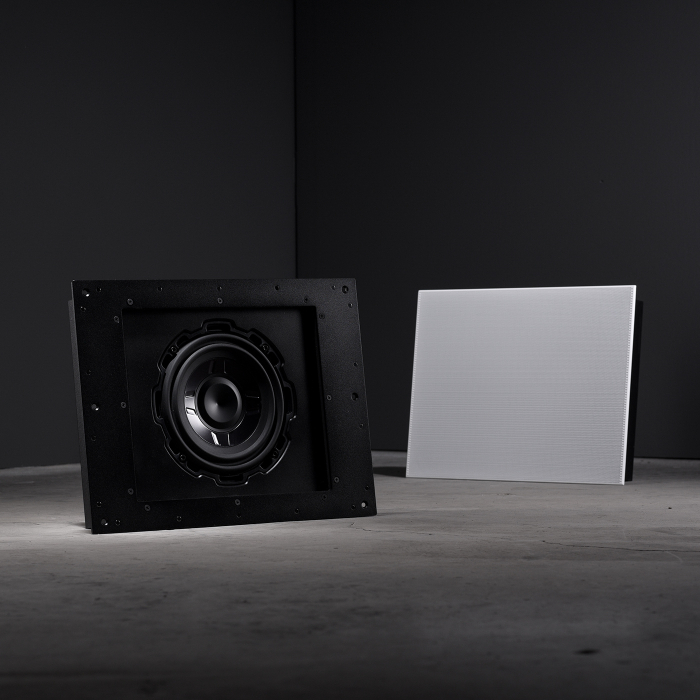

Aaros ACS8-IW Subwoofer
At less than 4″ deep, Leon’s ground-breaking Aaros 8″ in-wall subwoofer redefines the possibility of large bass from a small enclosure. Soundly constructed to prevent unwanted resonance, this in-wall subwoofer is ideal for any application where no floor space is available for a traditional sub. With color-matched perforated metal grilles, easily installed pre- or post-construction, and paired with Leon’s 1,000W subwoofer amplifier, this sub stands out by blending in.
- Cabinet design is less than 4″ deep to fit into any in-wall application
- Paired with Leon’s 1,000 watt Class A/B amplifier for deep, controller bass
- Custom painted metal grills available to match any color code or paint swatch
- Fully-sealed enclosures produce tight, accurate bass response
| Outer Dimensions | 17.5″ (w) x 13″ (h) with grille |
|---|---|
| Cutout | 14.25″ (w) x 12.25″ (h) |
| Depth | 3.75″ behind flange |
| Weight | 20 lbs. |
| Material | Sealed MDF enclosure; aluminum back |
| Finish | White perforated metal grill (custom colors available) |
| Components | 8″ shallow driver |
| Recommended Power | 250-500W (recommended with Leon L3-1K amplifier) |
| Max. Output | 108dB |
| Impedance | 6Ω |
| Frequency Response | 30-100Hz |
| Sensitivity | 90dB @ 2.83V/1m |
| Connections | Spring-loaded terminals |
| Installation | Mount between studs or with drywall anchors |
