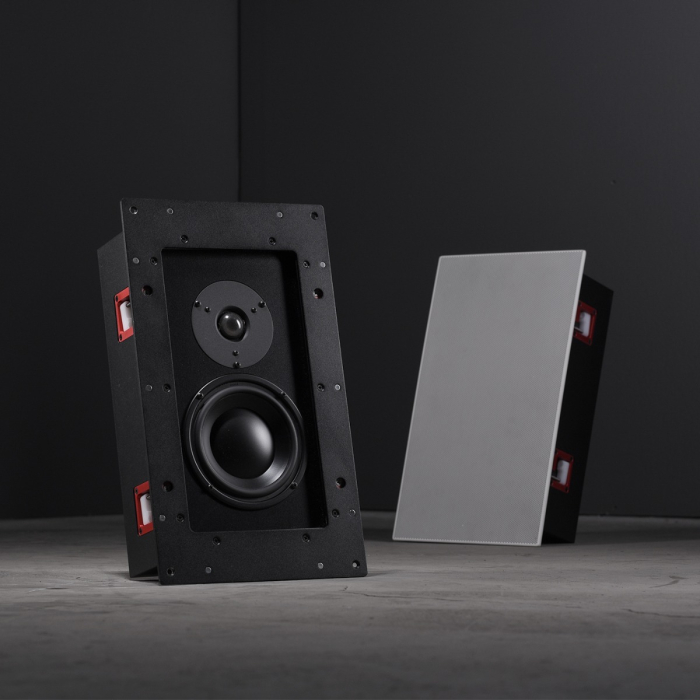

Vault v55UX In-Wall Speakers
Leon’s Vault Series in-wall speakers are fully sealed and handcrafted from solid MDF to deliver uncompromising quality in both construction and performance. The Vault v55UX speakers can be used as concealed L/C/R speakers to create high-performance home theater systems, or they can be used as rear channels to complement our Horizon™ or Profile™ Series speakers for a truly integrated sound solution.
SOLD INDIVIDUALLY
- Fully sealed and tuned enclosure constructed from 3/4″ MDF
- At only 3.75” deep, they fit easily into any standard wall
- Sonically-matched to our Horizon Hz55UX and Profile Pr55UX Series speakers
- Thin framed, removable magnetic grills can be custom painted in-house to match any color swatch or paint code
- Re-engineered mounting system for easy installation
| Outer Dimensions | 15.9” (h) x 9.4” (w) |
|---|---|
| Cutout | 14″ (h) x 8.5″ (w) |
| Weight | 15 lbs. |
| Depth | 3.75″ behind the flange |
| Material | Sealed MDF Enclosure; perforated metal grill |
| Finish | White (or custom color) |
| Connections | Spring-loaded terminals |
| Components | 5″ ultra-thin woofers; 28mm tweeters |
| Impedance | 6Ω |
| Recommended Power | 25-125W |
| Max. Output | 104dB avg; 110dB peak |
| Coverage | Vert: 110°, Hor: 140° |
| Frequency Response | 100–20kHz (+/- 3dB) |
| Sensitivity | 88dB @ 2.83V/1m |
